Equipment

Equipment: Services

Custom Bayshore Systems LAD

The LAD (Limited Access Drill) by Bayshore Systems was specifically designed to bring deep drilling capabilities to severely restricted access jobs. This machine was built specifically for our underpinning jobs and over the years has become one of the most versatile machines in our fleet. Capable of mobilizing through a doorway and powered by a trailer mounted power pack it is capable of getting into the tightest spots including inside a building. Along with caissons we do geological exploration and elevator piston shafts within existing elevator shafts.
Max Depth: 70'
Diameters: 18" and 24"

Custom TesCar CF1.5 Compact

Our custom built TesCar CF1.5 COMPACT is a hydraulic piling rig, and is operated by a radio remote control in dangerous working conditions for the operator's safety. This "small wonder" is a very compact and versatile machine. With a minimum transport width of 42" and a max width of 61" the CF1.5 COMPACT can move in the narrowest places and restricted areas. The machine rotary is powered by two hydraulic motors to give it more torque than machines of equivalent size. With short kelly bars and long kelly bars we can work in low overhead or go as deep as 60'
Max Depth: 60'
Max Diameter: 42"

Soil Tek S35c

Our Soil Tek S35c low head room hydraulic piling rig has a powerful engine and is great for projects that have restricted work areas. This is a compact, multi-purpose drill suitable for medium diameter drilled wells for very narrow spaces and low headroom construction sites. Rubber track pads to minimize help minimize damage to driveways and walkways.
Max Depth: 65'
Max Diameter: 48"

LoDril LM-40

Our LoDril LM-40 is a high performance drilling attachment which turns our excavator into one of our most versatile rigs in our fleet. The LoDril provides mobility, reach and low headroom capabilities, giving us advantages that other caisson drilling equipment can't. Whether we need to fit our foundation drill into a tight spot, reach over walls or casings, drill on rough or sloping terrain, our LoDril can accommodate a variety of drilling needs. It also features telescoping kelly bars which allow us to drill deep with a low profile attachment.
Max Depth: 60'
Max Diameter: 60"

LoDril LLM-60

Our LoDril LLM-60 is a high performance drilling attachment which turns our excavator into one of our most versatile rigs in our fleet. The LoDril provides mobility, reach and low headroom capabilities, giving us advantages that other caisson drilling equipment can't. Whether we need to fit our foundation drill into a tight spot, reach over walls or casings, drill on rough or sloping terrain, our LoDril can accommodate a variety of drilling needs. It also features telescoping kelly bars which allow us to drill deep with a low profile attachment.
Max Depth: 70'
Max Diameter: 72"

GEAX EK40 LR

Our GEAX EK40 LR (Long Reach) is a multi-purpose piling rig designed to achieve the highest levels of versatility, maneuverability, ease of transportation, production, and reliability. For each drilling mode a special kit is designed to optimize performance. With almost 9' of reach from the front of tracks it has the ability to reach far in compact areas with the power of a much larger machine. Rubber track pads.
Max Depth: 52.5'
Max Diameter: 60"

GEAX EK110

Our GEAX EK110 is a multi-purpose piling rig designed to achieve the highest levels of versatility, maneuverability, ease of transportation, production, and reliability. This rig is similar to our GEAX EK40 but has larger capabilities and power. With over 81,000 ft lbs of torque this machine is great at powering through rock and drilling large diameter piles. Rubber track pads.

Max Depth: 102'

Max Diameter: 96"

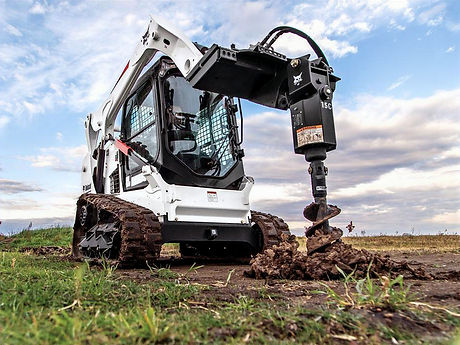

Track Loader w/Auger Attachment

Our Compact Track Loader allows us to maneuver around tight work spaces, digging deeper, pushing further, and doing more with this tiny, but mighty machine. The Auger attachment is ideal for drilling holes 6-24" in diameter.
